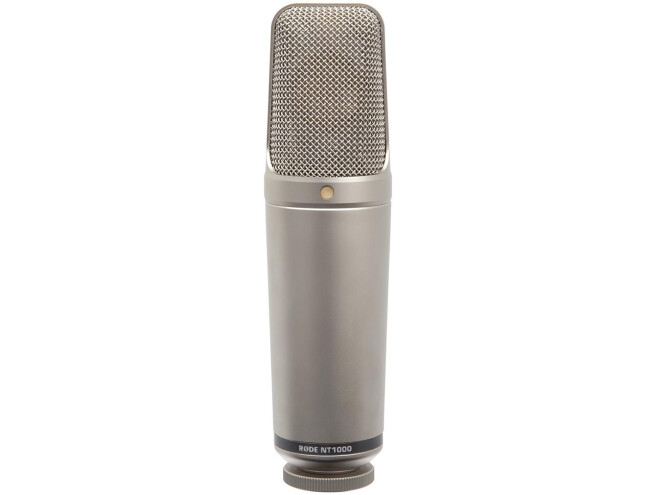

The NT1000 Large Diaphragm Condenser Microphone from RODE is a side address, large diaphragm microphone intended for vocal and general instrument recording. The NT1000 features a gold plated large diaphragm capsule with a cardioid polar pattern. The cardioid pick-up pattern is effective in minimizing noise from off axis sections of the microphone.

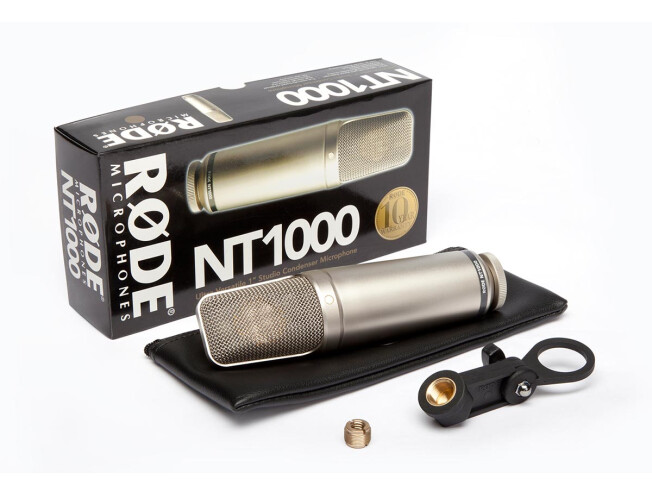

The capsule is internally shock mounted, further minimizing handling noise as well as protecting the capsule from potential damage. The NT1000 provides a wide frequency response of 20 Hz to 20 kHz. High quality output electronics provide transparent audio reproduction at high output levels while maintaining a low noise floor. The NT1000 is powered via +48 Volt Phantom Power and includes the RODE RM2 ring-mount microphone stand.
Cardioid Polar Pattern
The cardioid pick-up pattern is effective in minimizing noise from off axis sections of the microphone such as monitors, instruments, room ambiance etc.
Gold Plated Diaphragm
The gold plated diaphragm provides transparent signal reproduction and frequency response. The diaphragm is internally shock-mounted, providing protection against potential damage.Wide Frequency Response
The NT1000's 20 Hz to 20 kHz frequency response allows the microphone to be used in a variety of applications.
| Operating Principle | Pressure Gradient |
| Transducer | Condenser |
| Diaphragm | 1" / 25.40 mm |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| Equivalent Noise Level | 6 dB A-Weighted |
| Maximum SPL | 140 dB SPL 1% |
| Impedance | 100 ohms |
| Sensitivity | -36 dB, re: 1 V/Pa |
| Output Connectors | 3-pin XLR |
| Power Requirements | 24 V, 48 V |
| Length | 8.23" / 209 mm |
| Diameter | 2.13" / 54 mm |
| Weight | 1.50 lb / 682 g |
