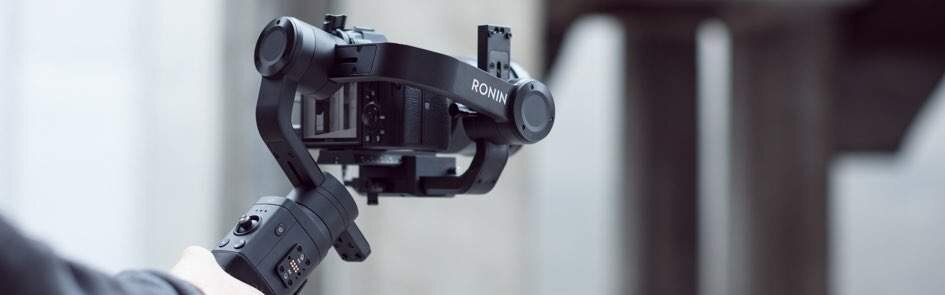

The DJI Ronin-S is more than just a miniaturized version of the larger Ronin gimbal stabilizers; it represents a scalable ecosystem for integrating DSLR and mirrorless cameras into professional-grade workflows. The single-handed form factor of the Ronin-S lends itself to lighter cameras. But don't let its size fool you; the Ronin-S has a lot going on under the hood. Separate modules are available for the handle and accessory docks, allowing you to customize the gimbal based on how you wish to operate it.
The DJI Ronin-S is more than just a miniaturized version of the larger Ronin gimbal stabilizers; it represents a scalable ecosystem for integrating DSLR and mirrorless cameras into professional-grade workflows. The single-handed form factor of the Ronin-S lends itself to lighter cameras. But don't let its size fool you; the Ronin-S has a lot going on under the hood. Separate modules are available for the handle and accessory docks, allowing you to customize the gimbal based on how you wish to operate it.

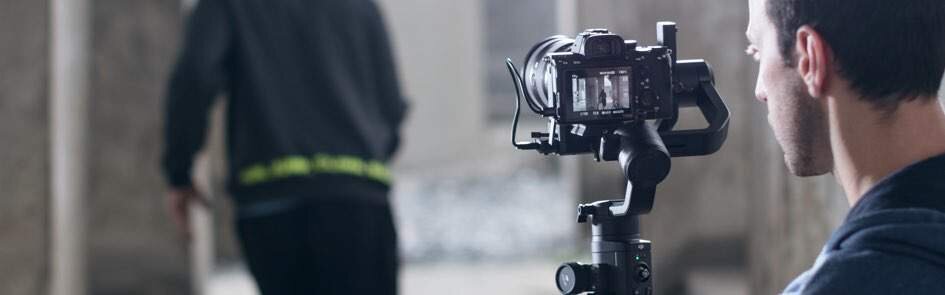

By offsetting the roll motor, the Ronin-S holds the camera above the roll axis, leaving the camera's LCD screen unblocked. This design also minimizes the camera shake that occurs when transitioning from upright to underslung modes and vice versa.
Customize the response of the Ronin-S to fit your shooting style. Two response types can be saved and instantly recalled with a single click. Go from smooth camera movement to rapid response with the flick of a switch to be ready for any kind of shooting situation.

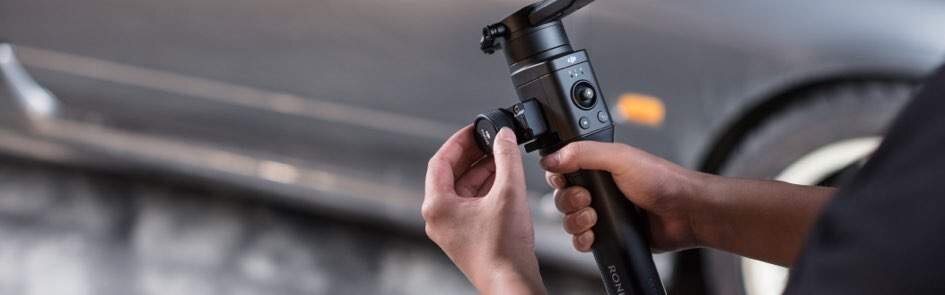

Modular Design
The Ronin-S was built to be modular. Direct-connected and wireless accessories are supported. For example, separately available DJI control devices, such as the Master Wheels and Master Force, enhance the usability of the Ronin-S in professional scenarios.
The Ronin-S can mount to an RC buggy for low angle shots or even act as a stabilized remote head when mounted to a jib. The DJI Focus Command Unit can be mounted to the accessory dock, enabling creators to pull focus when operating with the standard handle. You can also attach the Ronin-S to a dual-handheld bar without compromising control of the gimbal, focus, or the camera shutter.
Multiple accessory mounts are allocated on the Ronin-S, providing full support for add-ons such as a microphone, LED lights, and even a wireless video transmitter. Compatibility with DJI control devices such as Master Force provides intuitive controls. The Master Wheels are also able to provide remote operators precise gimbal movements.
| Camera Tray Dimensions | Maximum depth from the center of gravity on the camera base plate: 98 mm Maximum height measured from top of the camera base plate: 150 mm Maximum width: 205 mm |
|---|---|
| Accessory Port | Mechanical: 1/4”-20, 3/8”-16 Mounting Hole, M4 Mounting Hole Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port |
| Input Power | Model: RB1-2400mAh-14.4V Type: 18650 LiPo Capacity: 2400 mAh Energy: 34.56 Wh |
| Connections | Bluetooth 4.0 USB-C |
| DJI Assistant 2 Requirements | Windows 7 or above Mac OS X 10.11 or above |
| Ronin App Requirements | iOS 9.0 or above Android 4.4 or above |
| Load Weight (Reference Value) | 3.6 kg (Handheld) |
|---|---|
| Angular Vibration Range | ±0.02° |
| Maximum Controlled Rotation Speed | Pan axis: 360°/s Tilt axis: 360°/s Roll axis: 360°/s |
| Mechanical Endpoint Range | Pan axis: 360° continuous rotation Tilt axis: +185° to -95° Roll axis: 360° continuous rotation |
| Controlled Rotation Range | Pan axis: 360° continuous rotation Tilt axis: +135° to -90° (Upright Mode, +90° to -135° (Underslung and Flashlight Mode) Roll axis: ±30°, 360° continuous rotation (Roll 360 mode) |
| Working Current | Static current: ≈0.16 A |
|---|---|
| Bluetooth Operating Frequency | 2.4 to 2.48 GHz |
| Bluetooth Transmitter Power | 0 dBm |
| Operating Temperature | -4° to 113° F (-20℃ to 45℃) |
| Weight | Approx. 3.3 lb(gimbal only), Approx. 4.1 lb (gimbal and grip included) |
| Dimensions | Approx. 202×185×486 mm |
