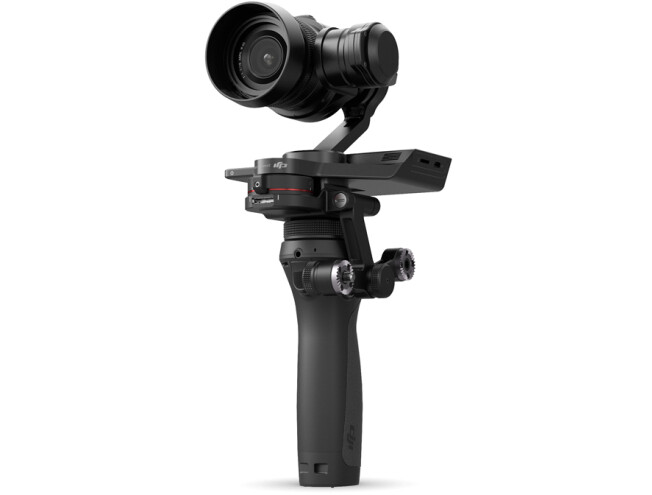

The world’s filmmakers just got a new favorite tool: the Osmo RAW. Equipped with the Zenmuse X5R camera, it is the only compact and stabilized, cinema-ready handheld filmmaking system on the planet, letting you capture breathtaking professional 4K footage in CinemaDNG RAW so that you can edit your footage to look exactly the way you need it.
Packed with a powerful MFT sensor, the camera captures 4K video at a framerate of up to 30fps and at a 1.7Gbps average bitrate while the integrated 3-axis stabilization gimbal keeps the camera level. Add the DJI Focus Handwheel to pull focus and control the camera remotely, or do so through the DJI GO app.
Note: Panorama and Timelapse functions are not currently available natively with the Osmo Pro and Osmo RAW and will require additional software for post production. If these functions are required, other Osmo products are available.
| Camera | |
|---|---|
| Model | Name: Zenmuse X5R |
| Lens Mount | MFT (Micro Four Thirds) |
| Photo Resolution | 16 MP (4608 x 3456) |
| Video Resolution | DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 25p, 30p FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p |
| Field of view (FOV) | 15mm f1.7 ：72° (included) 12mm f2.0：84° (available separately) |
| Photo Modes | Single shot Burst: 3, 5, or 7 frames Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias Time-Lapse: 5, 7, 10, 20, or 30 second intervals |
| ISO Range | 100 to 25600 |
| Shutter Speed | 8 to 1/8000 second |
| Video Bitrate | Up to 2.4 Gbps (1.7 Gbps average) |
| Supported File Types | Photo: JPEG, DNG RAW Video: MP4, MOV (MPEG-4/AVC/H.264F) RAW Video: CinemaDNG RAW File System: FAT32 / exFAT |
| Recording Media | Class 10 / UHS-1 or better microSD (up to 64 GB) 512 GB SSD (for RAW video recording) |
| Power Consumption | Static: 19.5 W Peak: 25 W |
| Gimbal | |
|---|---|
| Model | Zenmuse X5R |
| Mount | Detachable |
| Number of Axes | 3-axis |
| Control Angle Accuracy | ±0.02° |
| Control Range | Pitch: -90° to +30° Pan: ±320° |
| Manual Control Speed | Pitch: Up to 120°/second Pan: Up to 180°/second |
| Lens | |
|---|---|
| Compatibility | DJI MFT 15mm f/1.7 ASPH (included) Panasonic Lumix 15mm f/1.7 (available separately) Olympus M. ED 12mm f/2.0 (available separately) |
| Model | DJI MFT 15mm f/1.7 ASPH |
| Mount | MFT (Micro Four Thirds) |
| Focal Length | 15 mm 35mm Equivalent: 30 mm |
| Aperture Range | f/1.7 to f/16 |
| Focus Range | 0.7' (0.2 m) to ∞ |
| Field of View | 72° |
| Elements | 9 elements in 7 groups (3 aspherical elements) |
| Aperture | 7 diaphragm blades / circular aperture diaphragm |
| Dimensions | Maximum Diameter: 2.3" / 57.5 mm Length: 1.4" / 36 mm |
| Weight | 4.1 oz / 115 g |
Osmo - Handle × 1
Zenmuse X5R × 1
Osmo - X5 Adapter × 1

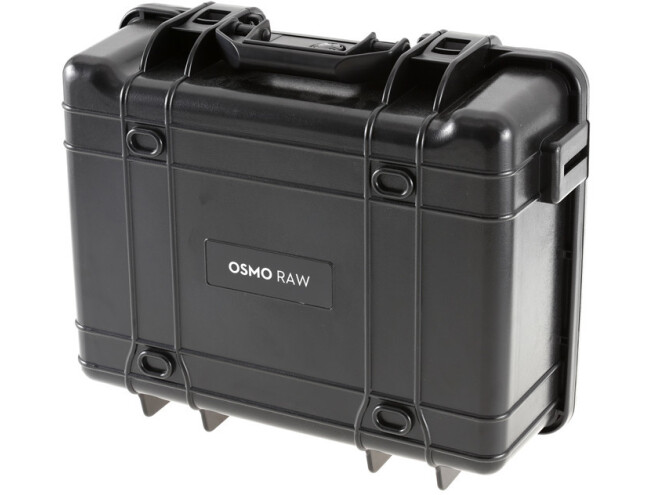

Osmo RAW - Carrying Case × 1

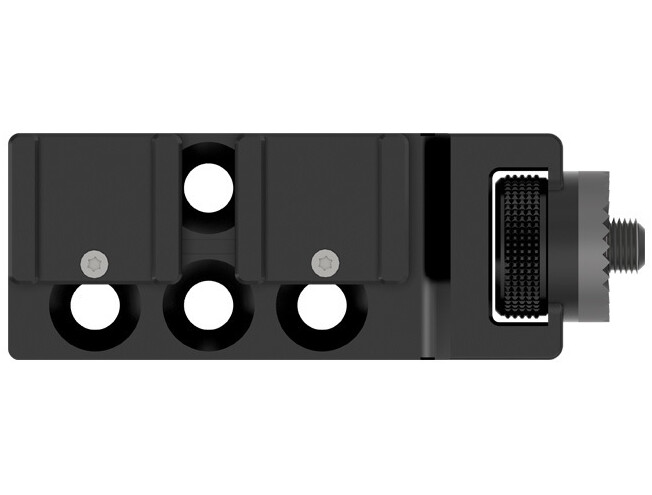

Osmo - Universal Mount × 1

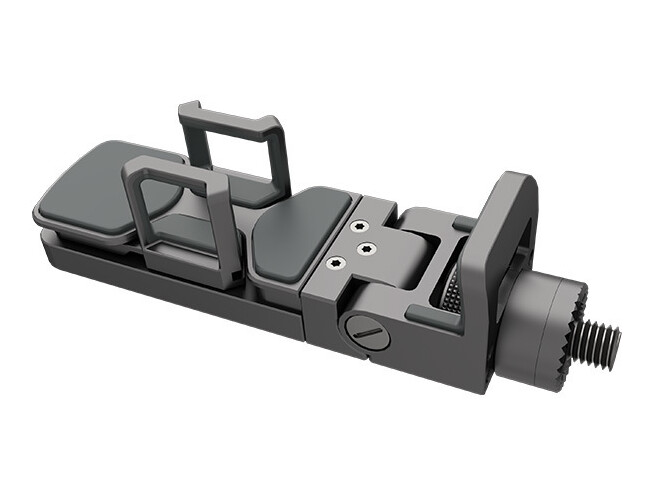

Osmo Phone Holder × 1

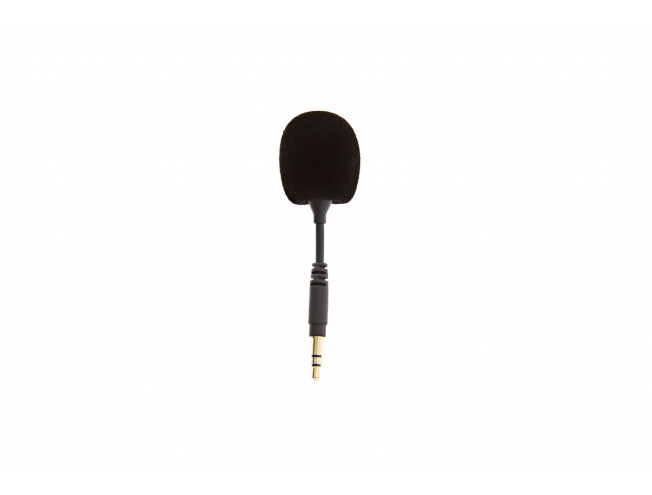

Osmo - DJI FM-15 Flexi Microphone × 1

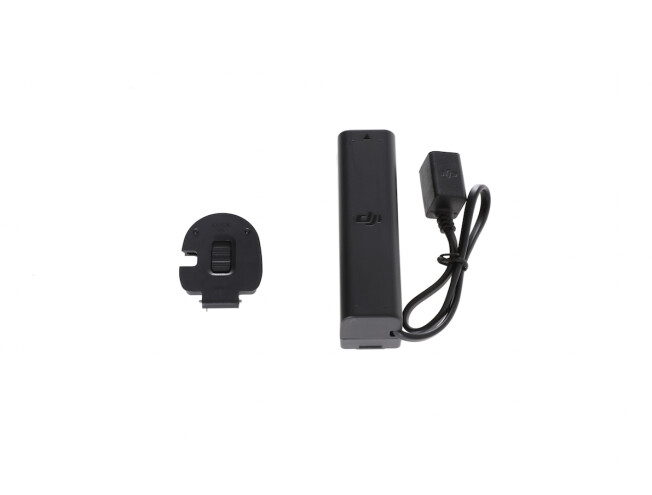

Osmo - External Battery Extender × 1

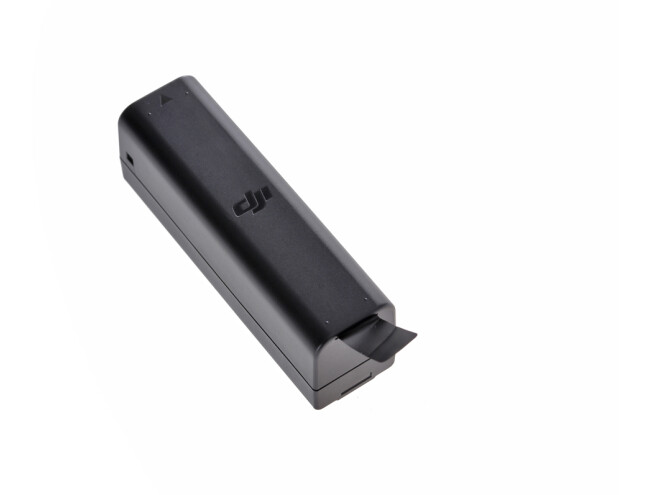

Osmo - Intelligent Battery (High Capacity) × 4

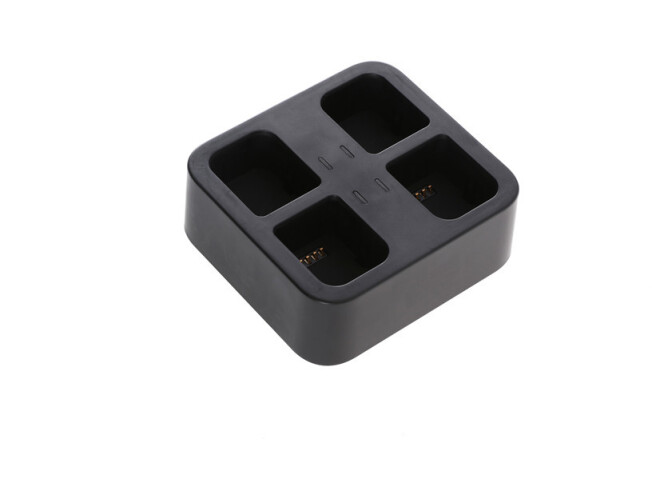

Osmo - Quad Charging System (Adapter Excluded) × 1

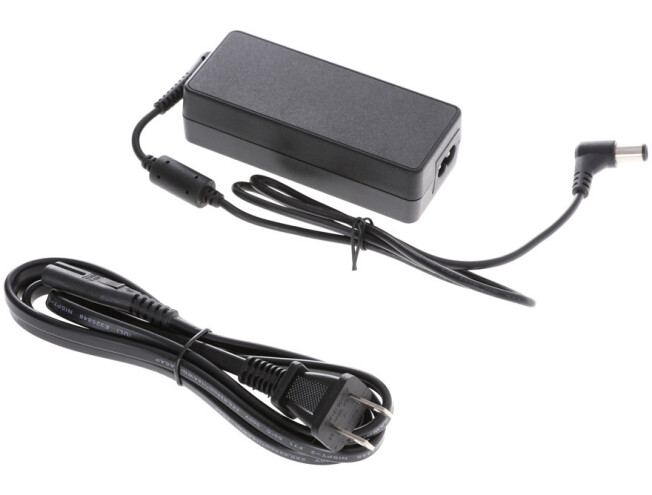

Osmo - 57W Power Adapter × 1
