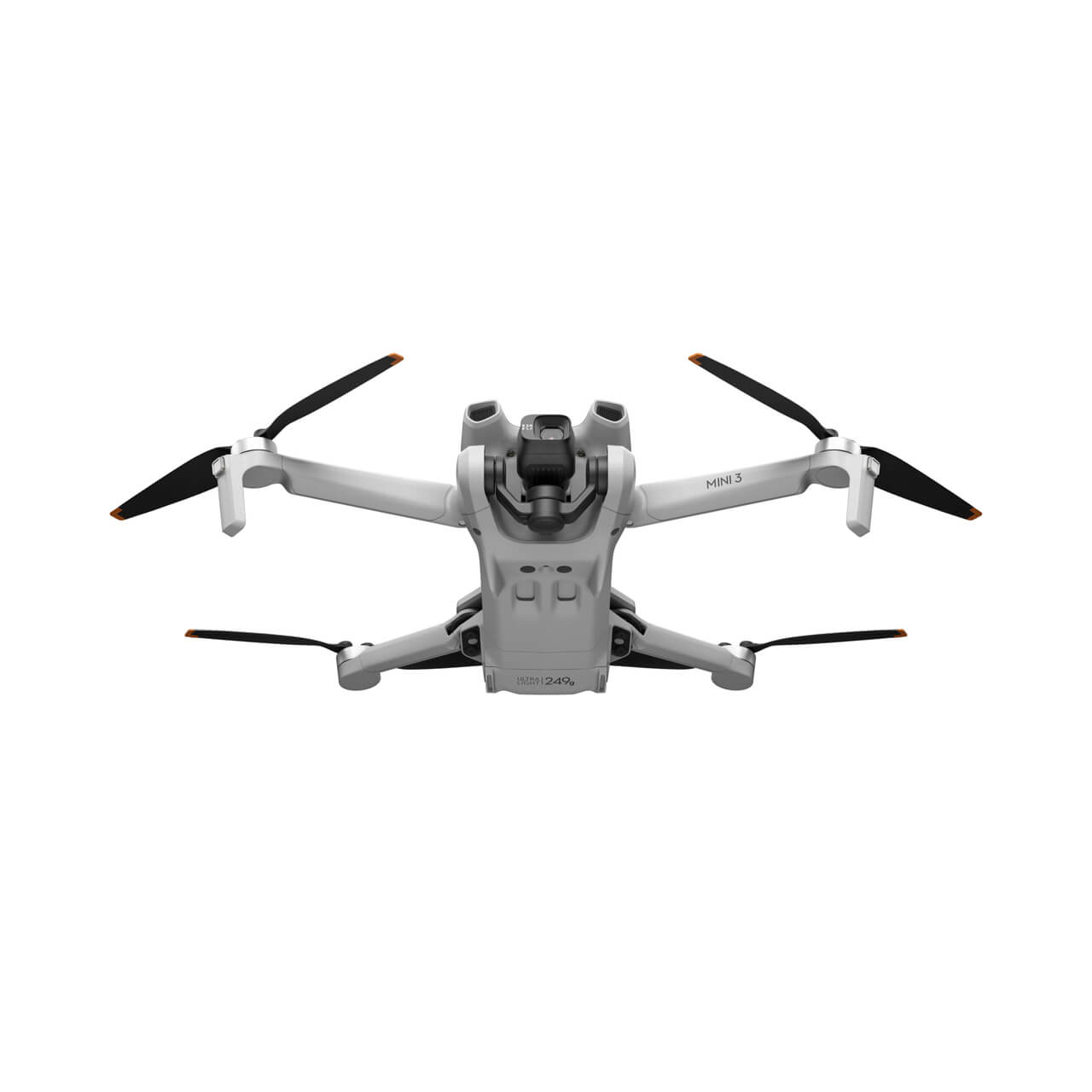

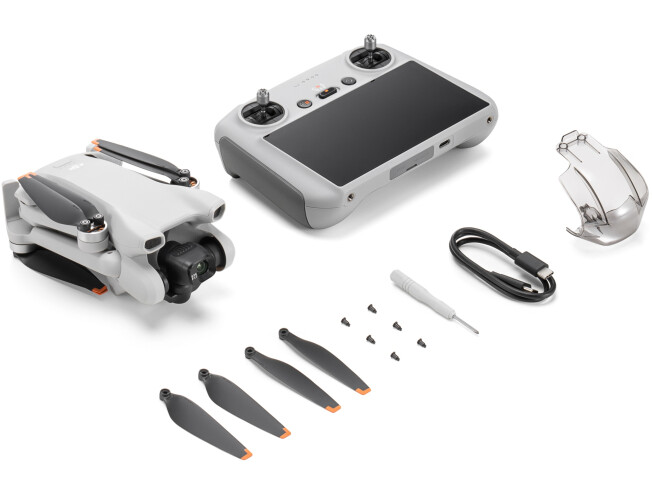

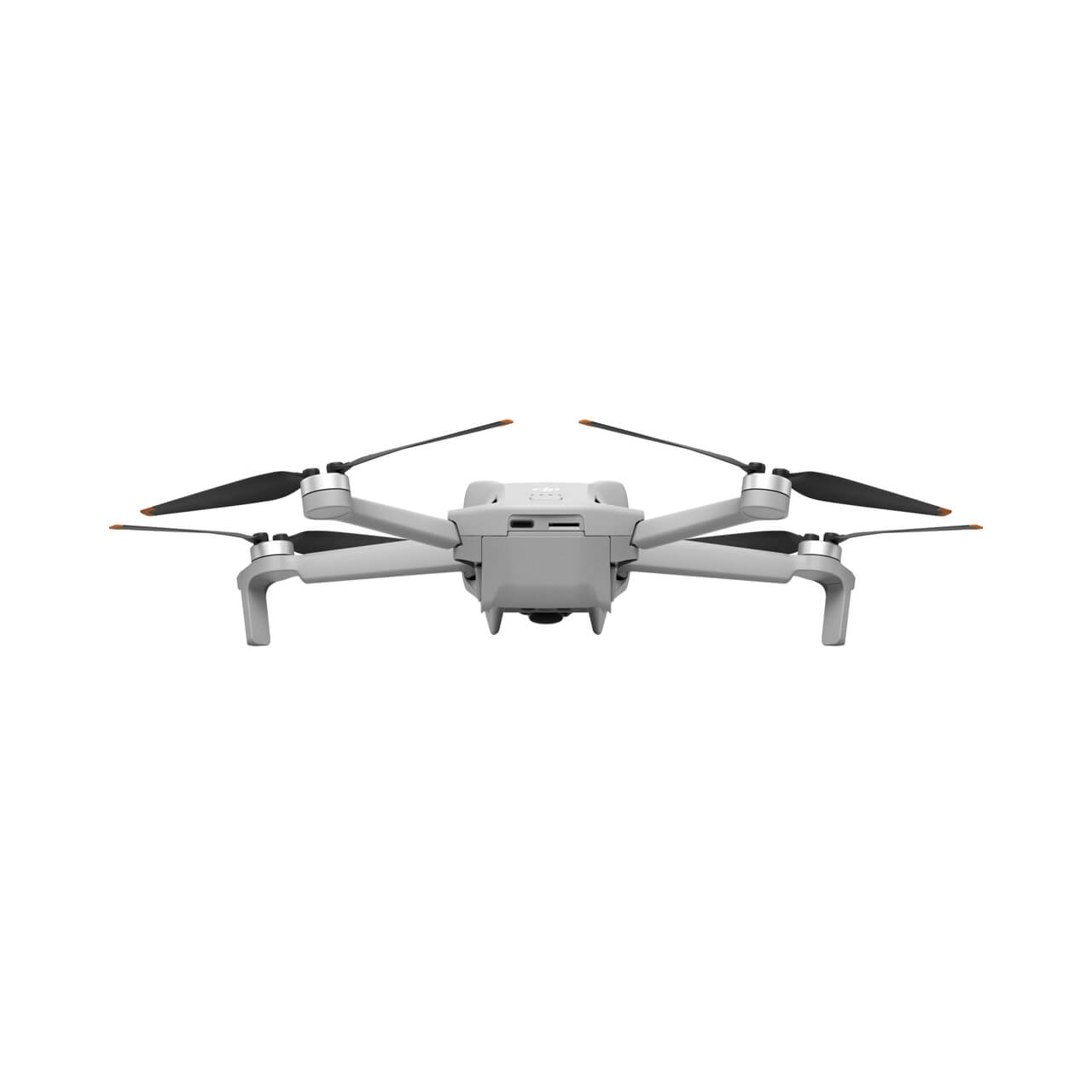

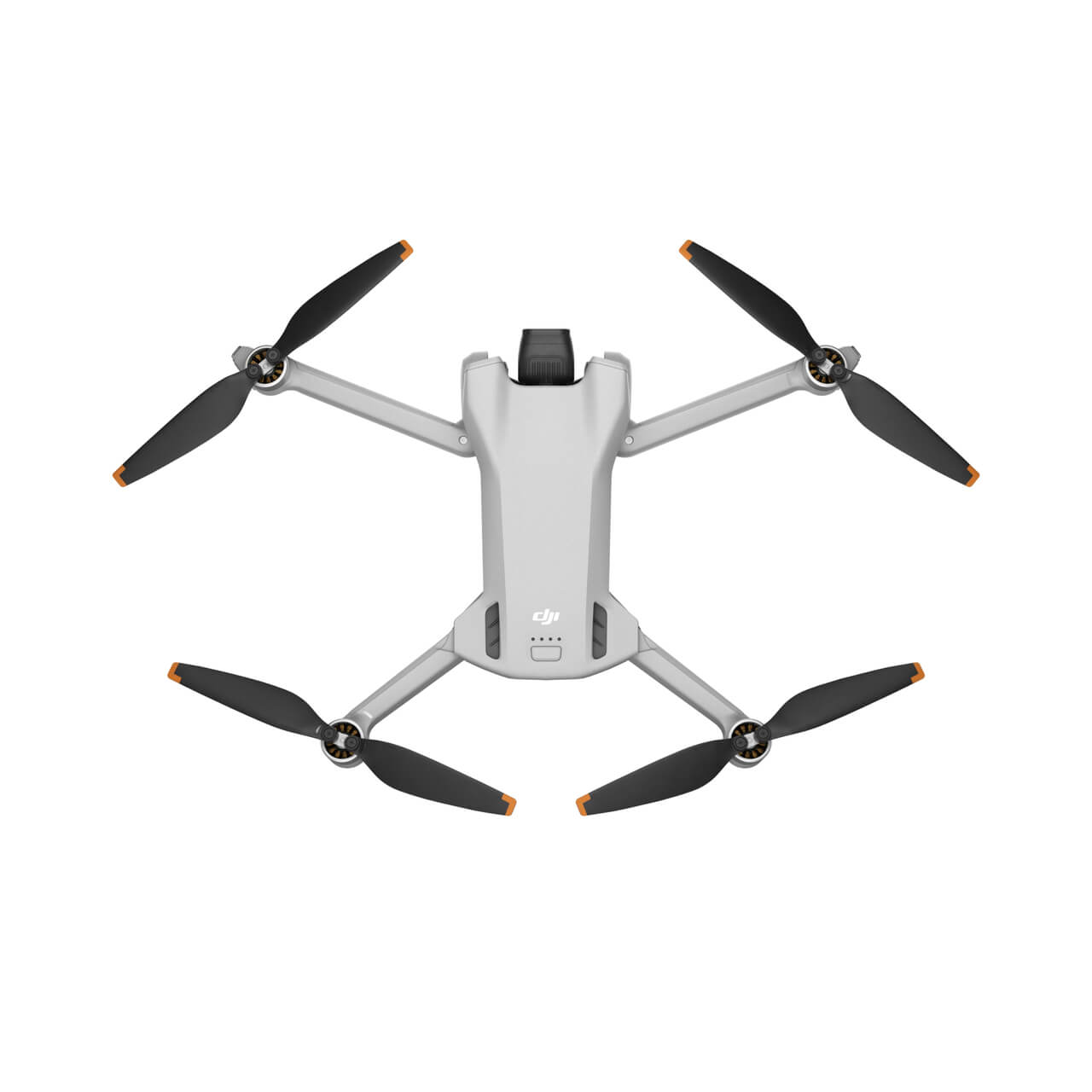

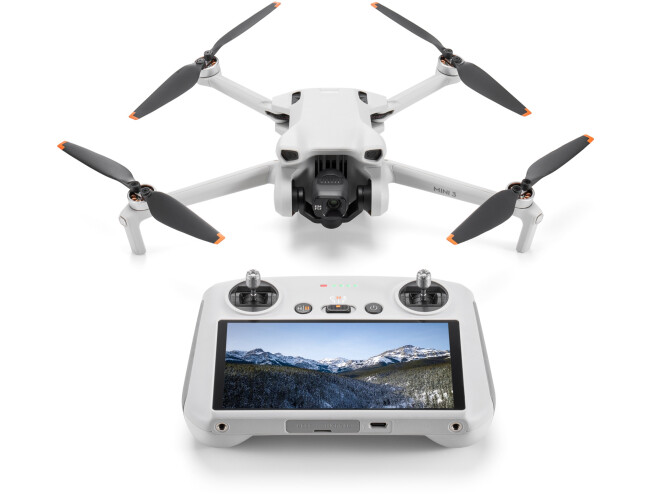

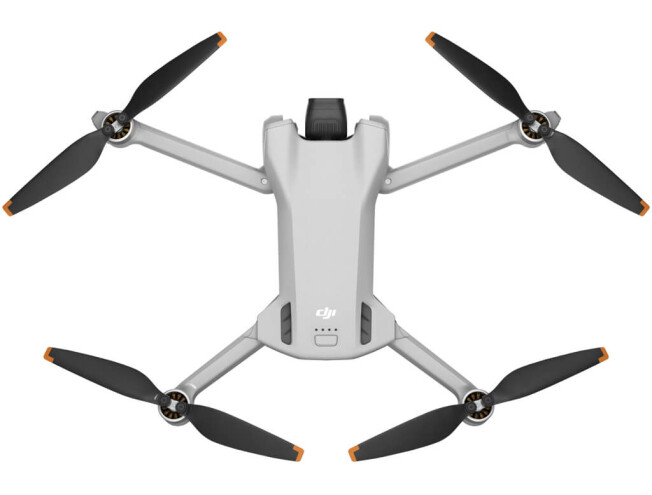

Droon DJI Mini 3DJI RC puldiga

Aircraft

• Takeoff Weight

• 248 g
  Standard aircraft weight (including the Intelligent Flight Battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Registration is not required in some countries and regions. Check local laws and regulations before use. With the Intelligent Flight Battery Plus,* the aircraft will weigh more than 249 g (about 290 g). Please check and strictly abide by local laws and regulations before flying.
  * Sold separately and only in selected countries and regions.

• Dimensions

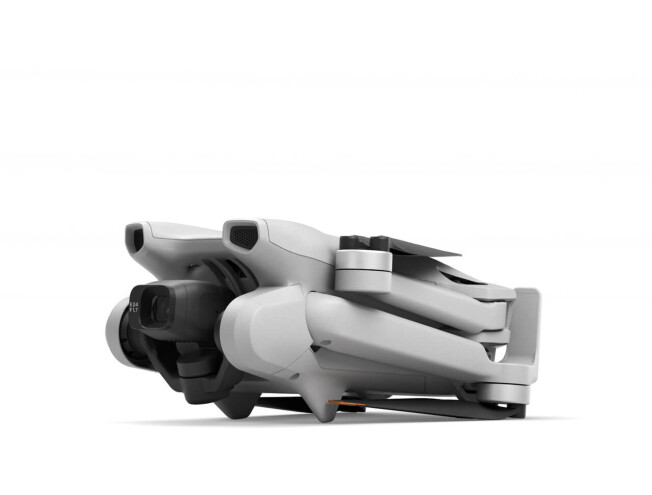

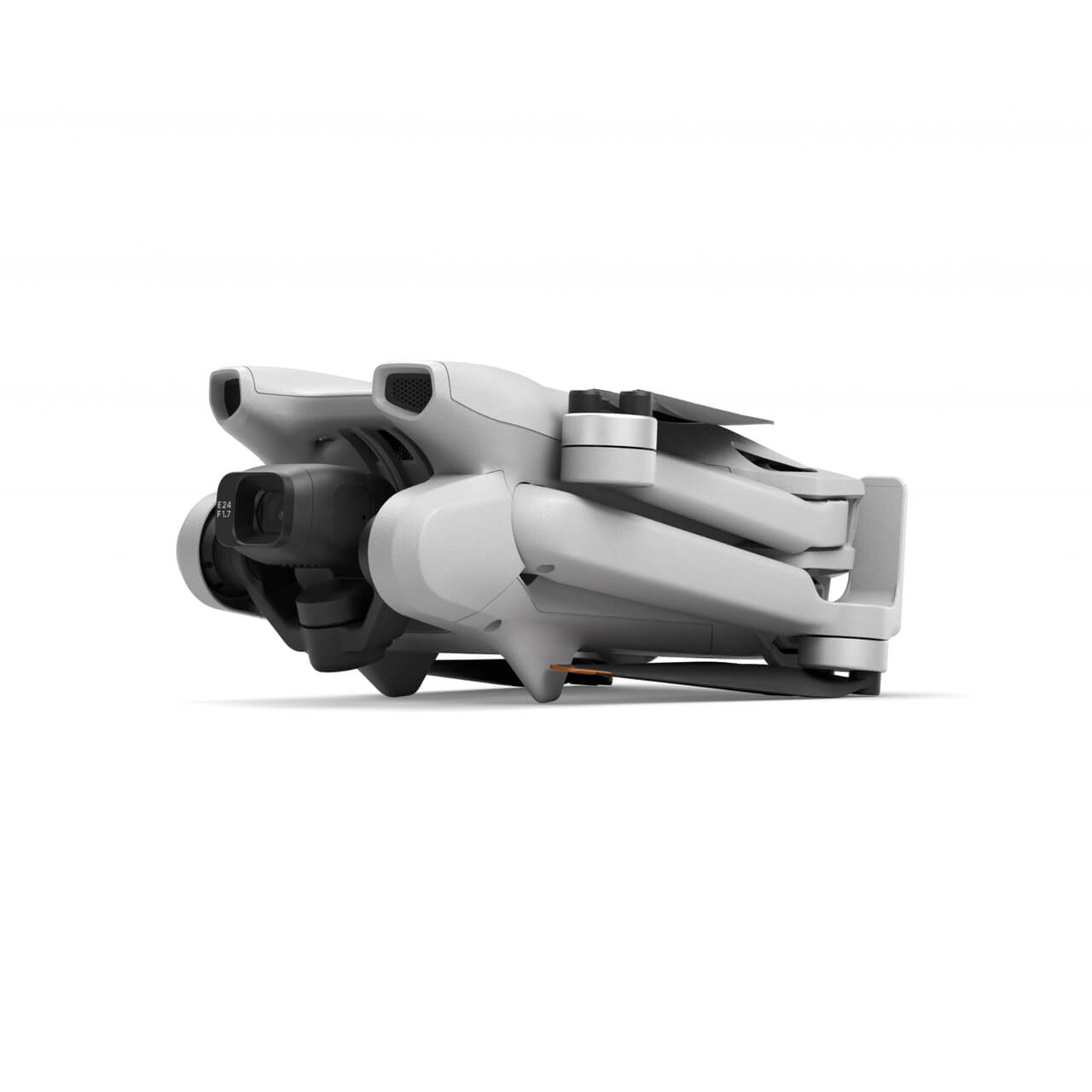

• Folded (without propellers): 148×90×62 mm (L×W×H)
  Unfolded (with propellers): 251×362×72 mm (L×W×H)

• Max Ascent Speed

• 5 m/s

• Max Descent Speed

• 3.5 m/s

• Max Horizontal Speed (at sea level, no wind)

• 16 m/s
  The max horizontal speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.

• Max Takeoff Altitude

• With Intelligent Flight Battery: 4000 m
  With Intelligent Flight Battery Plus*: 3000 m
  Increase in aircraft weight can affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not mount additional payloads like a propeller guard or third-party accessories to avoid diminished propulsion.
  * Sold separately and only in selected countries and regions.

• Max Flight Time

• 38 minutes (with Intelligent Flight Battery)
  51 minutes (with Intelligent Flight Battery Plus*)
  Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 21.6 kph in a windless laboratory environment, in photo mode (without photo taking operation during flight), and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
  * Sold separately and only in selected countries and regions.

• Max Hovering Time

• 33 minutes (with Intelligent Flight Battery)
  44 minutes (with Intelligent Flight Battery Plus*)
  Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless laboratory environment, in photo mode (without photo taking operation during flight), and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
  * Sold separately and only in selected countries and regions.

• Max Flight Distance

• 18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions)
  25 km (with Intelligent Flight Battery Plus* and measured while flying at 43.2 kph in windless conditions)
  * Sold separately and only in selected countries and regions.

• Max Wind Speed Resistance

• 10.7 m/s (Level 5)

• Max Tilt Angle

• 40°

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + GLONASS + Galileo

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)

• Internal Storage

• N/A

Camera

• Image Sensor

• 1/1.3-inch CMOS
  Effective Pixels: 12 MP

• Lens

• FOV: 82.1°
  Format Equivalent: 24 mm
  Aperture: f/1.7
  Focus: 1 m to ∞

• ISO Range

• Video:
  100-3200
  Photo:
  100-3200

• Shutter Speed

• Electronic Shutter: 2-1/8000 s

• Max Image Size

• 4000×3000

• Still Photography Modes

• Single Shot: 12 MP
  Timed: 12 MP
  JPEG: 2/3/5/7/10/15/20/30/60 s
  JPEG + RAW: 5/7/10/15/20/30/60 s
  Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
  Panorama: Sphere, 180°, Wide Angle
  HDR: The Single Shot mode supports outputting HDR images.

• Photo Format

• JPEG/DNG (RAW)

• Video Resolution

• 4K: 3840×2160@24/25/30 fps
  2.7K: 2720×1530@24/25/30/48/50/60 fps
  FHD: 1920×1080@24/25/30/48/50/60 fps
  HDR: Recording with the 24/25/30fps frame rate supports outputting HDR images.

• Video Format

• MP4 (H.264)

• Max Video Bitrate

• 100 Mbps

• Supported File System

• FAT32 (≤ 32 GB)
  exFAT (> 32 GB)

• Color Mode

• Normal

• Digital Zoom

• 4K: 2×
  2.7K: 3×
  FHD: 4×

• QuickShots Modes

• Dronie, Helix, Rocket, Circle, and Boomerang

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, and pan)

• Mechanical Range

• Tilt: -135° to 80°
  Roll: -135° to 45°
  Pan: -30° to 30°

• Controllable Range

• Tilt: -90° to 60°
  Roll: -90° or 0°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

Sensing

• Sensing Type

• Downward vision system

• Downward

• Precise Hovering Range:
  0.5-10 m

• Operating Environment

• Downward:
  Diffuse reflective surfaces with a clear pattern and reflectivity > 20% (such as walls, trees, or people)
  Adequate lighting (lux > 15, normal indoor lighting conditions)

Video Transmission

• Video Transmission System

• DJI O2

• Live View Quality

• Remote Controller:
  720p/30fps

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmission Power (EIRP)

• 2.400-2.4835 GHz:
  < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.725-5.850 GHz:
  < 26 dBm (FCC/SRRC)
  < 14 dBm (CE)

• Max Transmission Distance (free of interference)

• FCC: 10 km
  CE: 6 km
  SRRC: 6 km
  MIC: 6 km
  Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.

• Max Transmission Distance (with interference)

• Strong Interference: urban landscape, approx. 1.5-3 km
  Medium Interference: suburban landscape, approx. 3-6 km
  Low Interference: suburb/seaside, approx. 6-10 km
  Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.

• Max Download Speed

• DJI O2:
  5.5 MB/s (with DJI RC-N1 Remote Controller)
  5.5 MB/s (with DJI RC)
  Wi-Fi 5: 25 MB/s*
  * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the SD card. Download speeds may vary depending on the actual conditions.

• Lowest Latency

• Approx. 200 ms
  Depending on the actual environment and mobile device.

• Antenna

• 2 antennas, 1T2R

Battery

• Capacity

• Intelligent Flight Battery: 2453 mAh
  Intelligent Flight Battery Plus*: 3850 mAh
  * Sold separately and only in selected countries and regions.

• Weight

• Intelligent Flight Battery: Approx. 80.5 g
  Intelligent Flight Battery Plus*: Approx. 121 g
  * Sold separately and only in selected countries and regions.

• Nominal Voltage

• 7.38 V

• Max Charging Voltage

• 8.5 V

• Type

• Li-ion

• Energy

• Intelligent Flight Battery: 18.1 Wh
  Intelligent Flight Battery Plus*: 28.4 Wh
  * Sold separately and only in selected countries and regions.

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• Intelligent Flight Battery:
  64 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
  56 minutes (with the DJI 30W USB-C Charger and the battery inserted into the Two-Way Charging Hub)

  Intelligent Flight Battery Plus*:
  101 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
  78 minutes (with the DJI 30W USB-C Charger and the battery inserted into the Two-Way Charging Hub)
  * Sold separately and only in selected countries and regions.

Charger

• Recommended Charger

• DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)*
  * When you charge the battery mounted to the aircraft or inserted into the Two-Way Charging Hub, the maximum charging power supported is 30 W.

Charging Hub

• Input

• 5 V, 3 A
  9 V, 3 A
  12 V, 3 A

• Output

• USB-A: Max Voltage: 5 V; Max Current: 2 A

• Charging Type

• Three batteries charged in sequence

• Compatible Batteries

• DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus*
  * Sold separately and only in selected countries and regions.

Storage

• Recommended microSD Cards

• SanDisk Extreme 32GB V30 A1 microSDXC
  SanDisk Extreme 64GB V30 A1 microSDXC
  SanDisk Extreme 128GB V30 A2 microSDXC
  SanDisk Extreme 256GB V30 A2 microSDXC
  SanDisk Extreme Pro 32GB V30 A1 microSDXC
  Kingston Canvas Go!Plus 64GB V30 A2 microSDXC
  Kingston Canvas Go!Plus 128GB V30 A2 microSDXC
  Kingston Canvas Go!Plus 256GB V30 A2 microSDXC
  Kingston Canvas React Plus 64GB V30 A1 microSDXC
  Kingston Canvas React Plus 128GB V30 A1 microSDXC
  Samsung PRO Plus 256GB V30 A2 microSDXC

Remote Controller

• Max Operating Time

• DJI RC-N1 Remote Controller
  Without charging any mobile device: 6 hours
  When charging a mobile device: 4 hours

• Max Supported Mobile Device Size

• DJI RC-N1 Remote Controller
  180×86×10 mm (L×W×H)

• Operating Temperature

• DJI RC-N1 Remote Controller
  -10° to 40° C (14° to 104° F)

• Transmission Power (EIRP)

• DJI RC-N1 Remote Controller
  2.400-2.4835 GHz:
  < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.725-5.850 GHz:
  < 26 dBm (FCC)
  < 23 dBm (SRRC)
  < 14 dBm (CE)
